The planet gear shaft is a common gear transmission device. Its working principle involves the interaction of components such as the sun gear (sun gear), planet gear (planet gear), ring gear (internal gear), and planet carrier. Here is a detailed explanation of how planet gear shafts work:

Drive of sun gear:

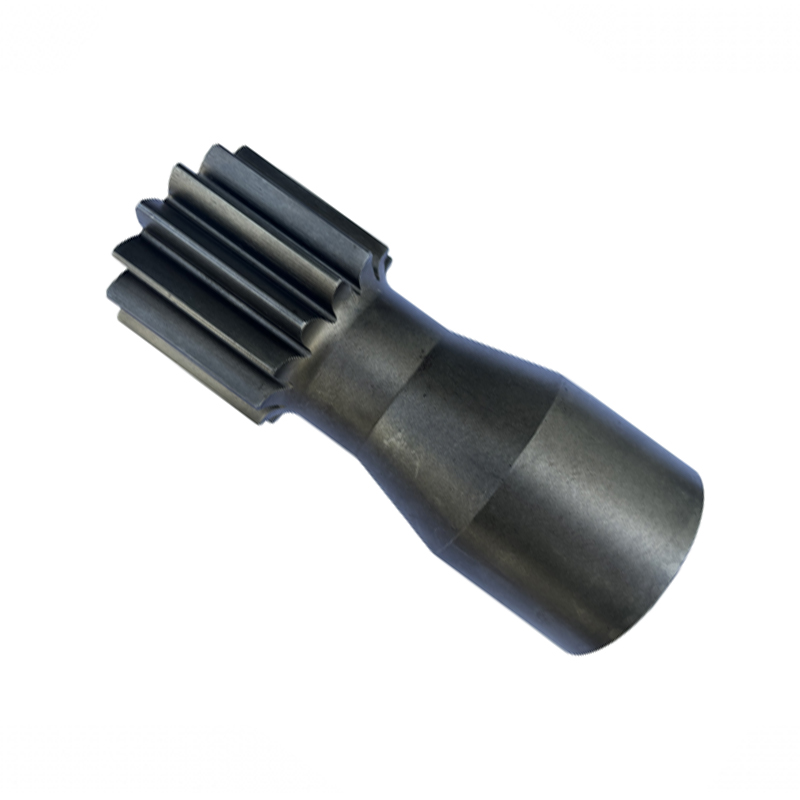

The work of a planet gear shaft begins with the sun gear, also known as the sun gear. The sun gear receives power from an external drive or input shaft and begins to rotate. This rotational motion transmits power to the entire planet gear shaft system.

Movement of the planet gear (planetary gear) around the sun gear:

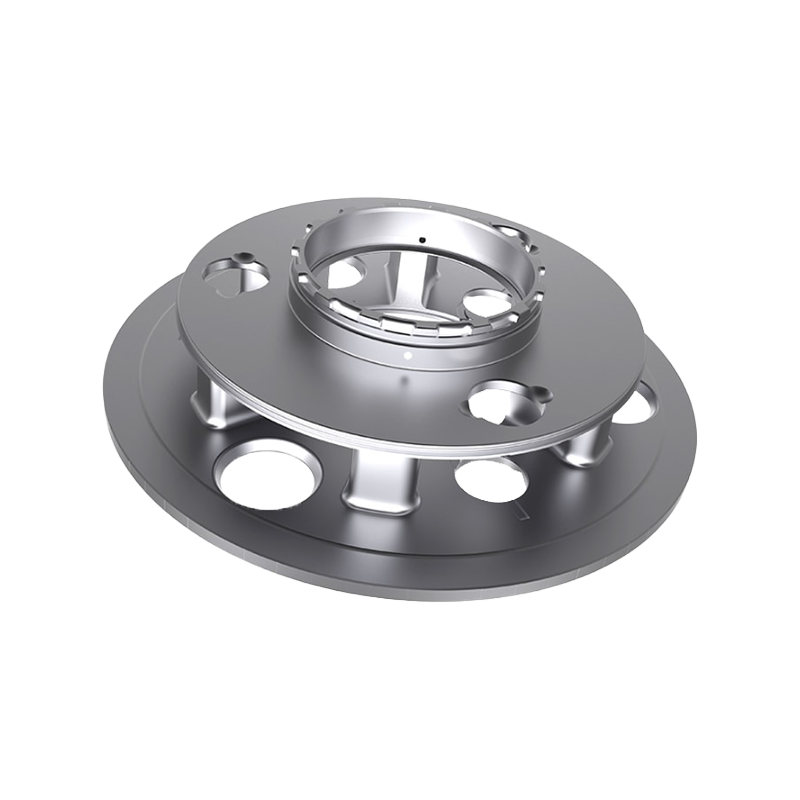

Surrounding the sun gear (sun gear) are multiple planet gears, which are fixed to the planet carrier and connected by bearings. These planet gears mesh with the sun gear and are supported by the planet carrier, allowing them to rotate around the sun gear. Due to the fixed position of the planetary gears, their rotation and revolution motions are superimposed on each other to form complex motion paths.

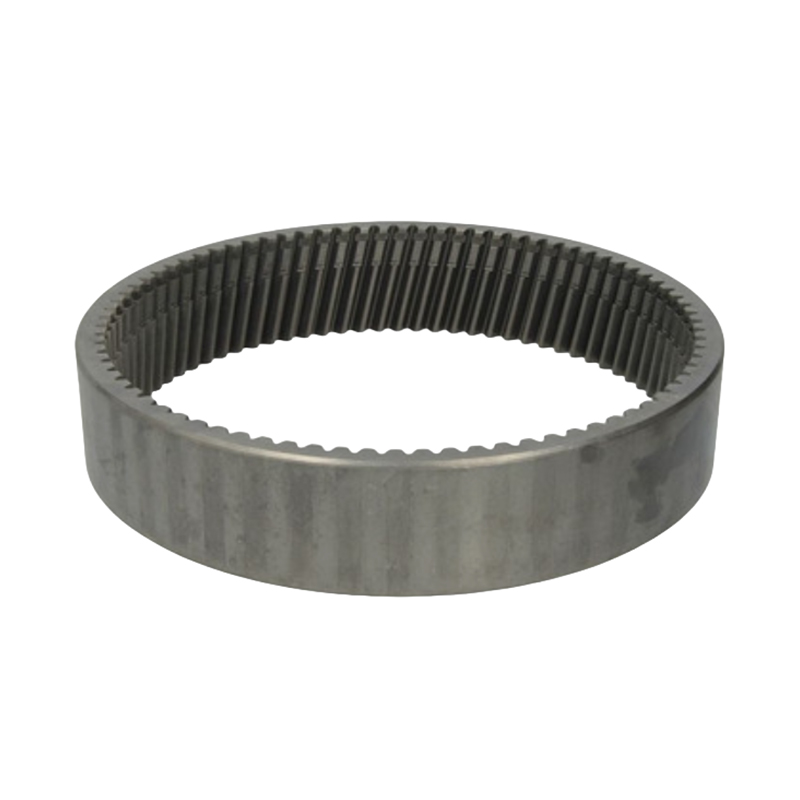

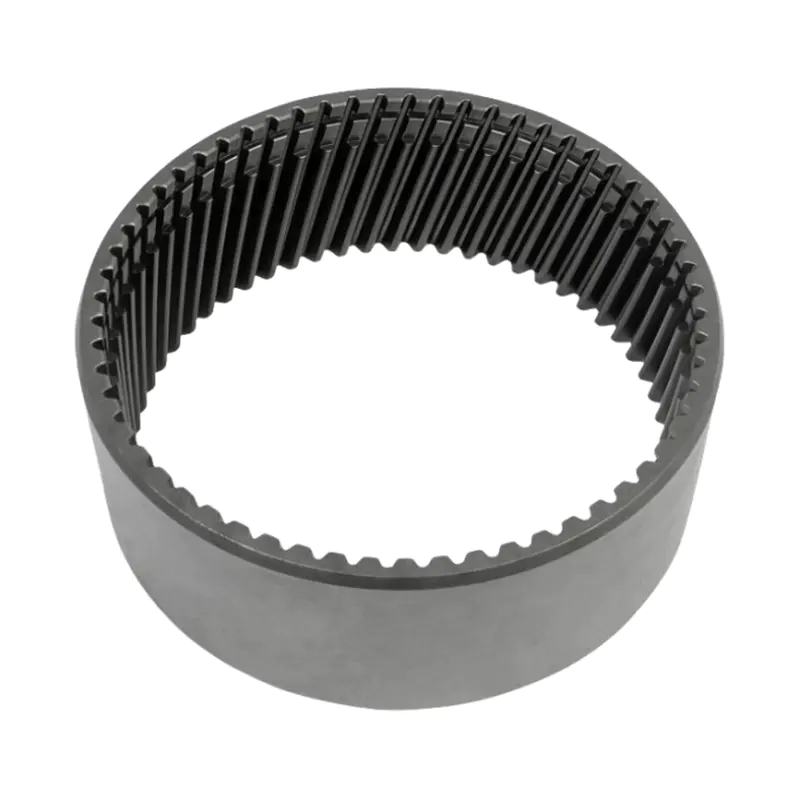

The positioning function of the ring gear (internal gear):

In the structure of the planet gear shaft, a ring gear is sometimes added, also called an internal gear. The number of teeth of the internal gear is usually equal to the number of teeth of the planetary gear. The internal gear meshes with the planet gear, and its motion is provided by an external drive or output shaft. The function of the internal gear is to position the motion trajectory of the planetary gear and form the transmission relationship between the planetary gear and the sun gear.

The transmission function of planetary gear:

The planetary gears in the planet gear shaft bear the main task of transmission. Through the meshing of the sun gear and the ring gear, the planet gears are subject to the double constraints sandwiched between them, and are driven by the pulling force of the sun gear and the ring gear. This double constraint and pulling force causes the planet gear to rotate in its orbit and transmit power to the output shaft or other connecting components.

Adjustment of transmission ratio:

The transmission ratio of the planet gear shaft can be adjusted through different designs. For example, the transmission ratio can be adjusted by changing the ratio of the number of teeth between the planet gear and the sun gear, changing the ratio of the number of teeth between the planet gear and the ring gear, or changing the speed of the driving device. This makes the planet gear shaft flexible and adaptable under different working conditions.

Movement stability and efficiency:

Due to the special movement mode of the planet gear and the planet carrier, as well as the meshing relationship between the planet gear, the sun gear, and the ring gear, the planet gear shaft has relatively stable movement and high transmission efficiency. At the same time, due to the compact structure of the planet gear shaft, the friction loss is small, making it excellent in many applications.
